How a Custom Distributor Keeps the Heat Down

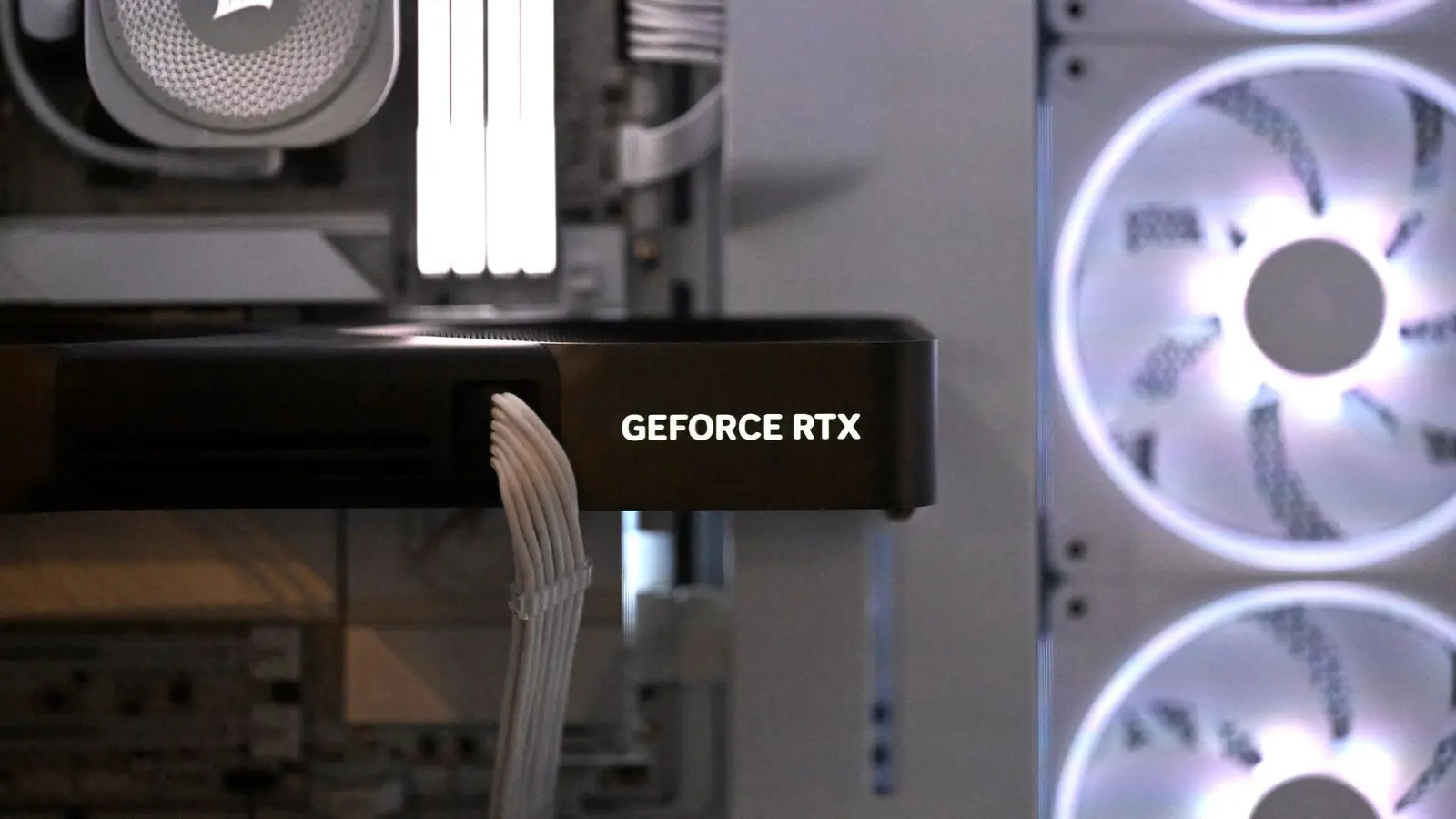

A Reddit user, known as u/DallasGrave, has posted a DIY solution to a growing problem with Nvidia’s RTX 5090 graphics cards. The issue involves the 12 VHPower connectors overheating and melting during heavy use. The modder claims that a custom power distributor can reduce peak temperatures to around 40 °C, even after a 48‑hour, 550 W stress test.
Breaking news
Town AI Secures $108 Million Series B, Valued at $1 Billion After $55 M Pre‑Series
Apple Prepares for Major Product Launch Event on October 28
Apple Releases Release Candidates for watchOS, tvOS and visionOS 27.2
Apple Limits iPhone Duo and iPhone 18 Pro Max to Reservation-Only Sales in Japan and South KoreaThe RTX 5090 is one of the most powerful GPUs on the market, and many early adopters have reported that the connectors on the power cables begin to scorch after only a few hours of gaming or rendering. DallasGrave’s fix uses a custom-built distributor that splits the power load across multiple connectors, preventing any single point from overheating. The modder says the solution is simple enough that other owners could replicate it without voiding warranties, and offers to share the design files with anyone who wants to try it.
Is This Fix Worth the Effort? (and Will It Affect Warranty?)
The distributor works by redistributing the 12 VHPower current from the single 8‑pin connector to two separate 8‑pin connectors. This effectively halves the current each connector carries, which in turn reduces the heat generated. DallasGrave ran a 48‑hour stress test at 550 W, a typical load for high‑end gaming rigs, and recorded a peak temperature of only 40 °C on the dual‑connector setup. In comparison, the original single‑connector design frequently reached 70 °C or higher, leading to visible melting of the cable insulation.
The modder also noted that the custom distributor can be made from readily available components, including a small PCB and standard 8‑pin connectors. By using a low‑resistance layout and ensuring proper ventilation around the cables, the heat buildup is minimized. DallasGrave stresses that the key to success is maintaining a clean, dust‑free environment, as accumulated grime can exacerbate heating.
Frequently Asked Questions
Many users wonder whether modifying their GPU’s power delivery will void the manufacturer’s warranty. DallasGrave advises that the solution is purely mechanical and does not alter the GPU’s internal circuitry. As long as the original power cables remain untouched, the warranty should remain intact. However, the modder cautions that any damage caused by improper installation could be considered user‑fault.
The broader community response has been mixed. Some reviewers praise the ingenuity of the fix, noting that it could extend the lifespan of the RTX 5090 for those who push their systems to the limit. Others point out that the solution may not be necessary for casual users, as the default connectors perform adequately under typical workloads. Nonetheless, the post has sparked a discussion about the balance between performance and hardware longevity.
